Placed List Palette

Placed List Palette†

This is a list of objects and events placed on the map that can be managed in one place. From here, you can change the position and size of the object or load them into the event editor.

Feature Description†

The Placed List palette has the following features:

• Add Button
  Add a new event on the map.

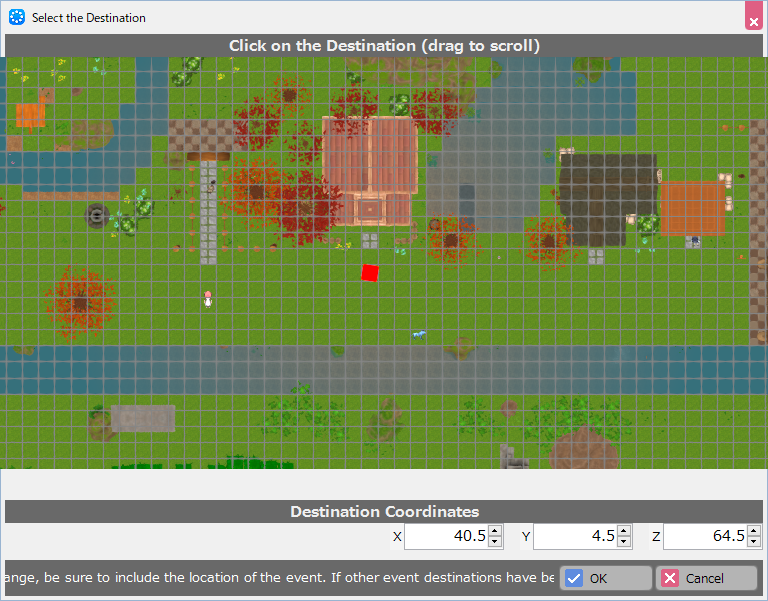

  Clicking the button opens a dialog box where you can specify the location of the event.

• Preview
  A map viewed from directly above will be displayed. Scroll by dragging and click on the location.

• Destination Coordinates
  You can specify the placement location by entering the X, Y, and Z coordinates.

• Create Group Button
  Group the selected entries.
  On the Placed List, groups are represented by a so-called folder-like appearance.
  You can also create groups under a group.

• Copy Button
  Copy the selection.

• Paste Button
  Paste the copied selections.

• Delete Button
  Delete the selection.

• Show/Hide Checkbox
  If the checkbox is unchecked, the entry will not appear in the map editor or in gameplay.
  Note that you can still move and perform other operations even if it is hidden on the map editor.
  Not only will it be hidden in game play, but its collision detection will also be disabled, and it will be treated as non-existent.

• Lock Button
  When locked (icon is yellow), the entry is no longer selected in the Map Editor by clicking on it, and cannot be manipulated using the manipulator.
  When multiple entries, including a locked entry, are selected and moved or otherwise manipulated, the locked entry is not affected by the manipulation.
  Locked entries become selected on the Placed List palette by clicking on them, and their properties can be changed.
  Also, for grouped entries, if the parent group is locked, all children will be locked.

• Search
  By entering text in the text input area at the top right of the Placed List, you can narrow down the entries to be displayed in the list.

Context Menu (right-click menu)†

• Convert to Event
  Convert an object or decal into an event.

• Group
  Group the selected entries.

• Ungroup
  Release the selected group.

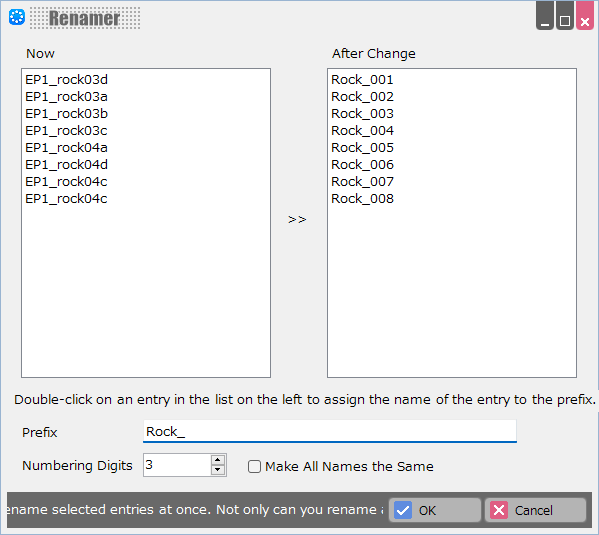

• Batch Rename (right-click menu)
  You can change the name of multiple entries on the list at once.

  • Now
    The current entry names for the selected entries are lined up.
    Double-clicking assigns the name of the entry to the "Prefix" field.
  • After Change
    The converted entry names are lined up, reflecting the results entered for the prefix and numbering digits.
  • Prefix
    Specify the letter to be prefixed to the entry name.
    This "Prefix" plus the "numbering digit" is the name of the entry.
  • Numbering Digits
    You can specify the numbering digits following the "Prefix".
  • Make All Names the Same
    When checked, all selected entry names are converted to the string specified in the "Prefix" field.

• Sort This Hierarchy by Name
• Sort Selected Elements by Name
• Sort All
  Sort the list of entries in the Placed List.
  When “Sort All” is selected, the entries are grouped by type (events, objects...) on the list.

List Entries†

The Placement List contains a variety of different types of entries.

• Map Properties Folder
  The folder contains the following entries.
  Clicking on it will bring up the respective "Map Settings" for you to edit.
  See the Map Settings Palette for more information.

• Camera
• Skybox Model
• Light
• Rendering Settings
• BGM
• Enemy Distribution Settings


• Start Point
  This is the point specified for the position of the main cast at the beginning of the game.

• Events
  The casts or objects for which the event is specified, as well as events that do not involve graphics.

• Objects
  Objects for which no events have been specified.

• Group
  These are grouped entries.

• Stairs and Slopes
  The terrain is specified for stairs and slopes.

• Local Light
  Local lights (independent light sources) placed on the map.

• Destination
  Represents the "destination" specified by the event.

• Camera
  It represents the frames in which the gazing point is set to world among the cameras belonging to this map created by the Camera Tool.

Properties†

The selected entry in the list can be edited from the "Properties" that appear. Editable elements depend on the type of entry.

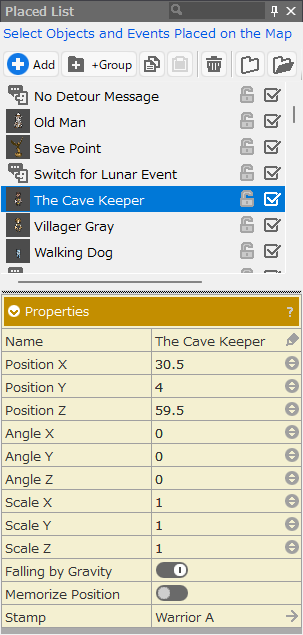

Properties of Objects and Events†

• Name
  You can enter the name of the entry.

• Position X
  Specify the position of the X axis.

• Position Y
  Specify the position of the Y axis.

• Position Z
  Specify the position of the Z axis.

• Angle X
  Specify the angle of the X axis.

• Angle Y
  Specify the angle of the Y axis.

• Angle Z
  Specify the angle of the Z axis.

• Scale X
  Specify the scale value to be changed in the X axis direction.

• Scale Y
  Specify the scale value to be changed in the Y axis direction.

• Scale Z
  Specify the scale value to be changed in the Z axis direction.

• Falling by Gravity (Event/Start Point only)
  When turned off, the Y-axis position is fixed unless the event panels "Start Player Falling" and "Start Event Falling" are applied.
  It will remain floating in the air / being in the ground.
  It does not climb or descend when moving over terrain with steps.

• Memorize Position (Event only)
  Events with this setting turned on will retain their position after moving with the event, even after they leave the map.

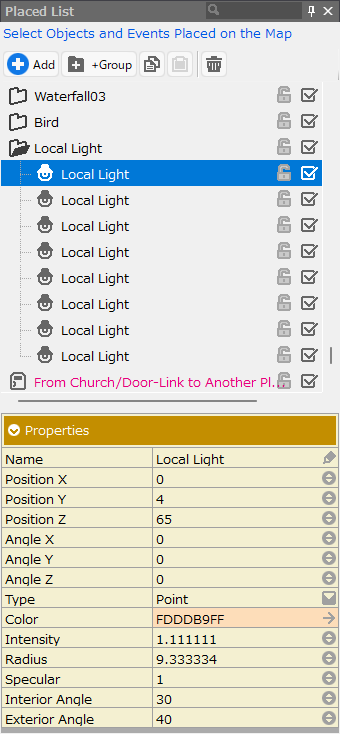

Light Properties†

• Type
  Specify whether you want a point light or a spot light.

• Color
  Click on the 8-digit RGBA color code that represents the color of light to open the color picker and specify the color.
  For details, see Tools Palette > "Color Picker".

• Intensity
  Specify the intensity of the light.

• Radius
  For a spot light, specify the area illuminated by the light as the radius of the base of the cone.
  For a point light, specify the area illuminated by the light as the radius of the sphere.

• Specular
  Specify the intensity of light reflected in the opposite direction of the incident light, which gives the 3D object a highlight effect, etc.

• Interior Angle
  For a spot light, specify the range of the strong light reaching by angle.

• Exterior Angle
  For a spot light, specify the range of the weak light reaching by angle.

Decal Properties†

#ref(): File not found: "Placed_List_Pallete_decal.png.png" at page "Placed List Palette"

• Decal Stamp
  Specify the decal stamp to be used.

• Width
  Specify the "width" of the box where the decal will be placed.

• Elevation
  Specify the "elevation" of the box where the decal will be placed.
