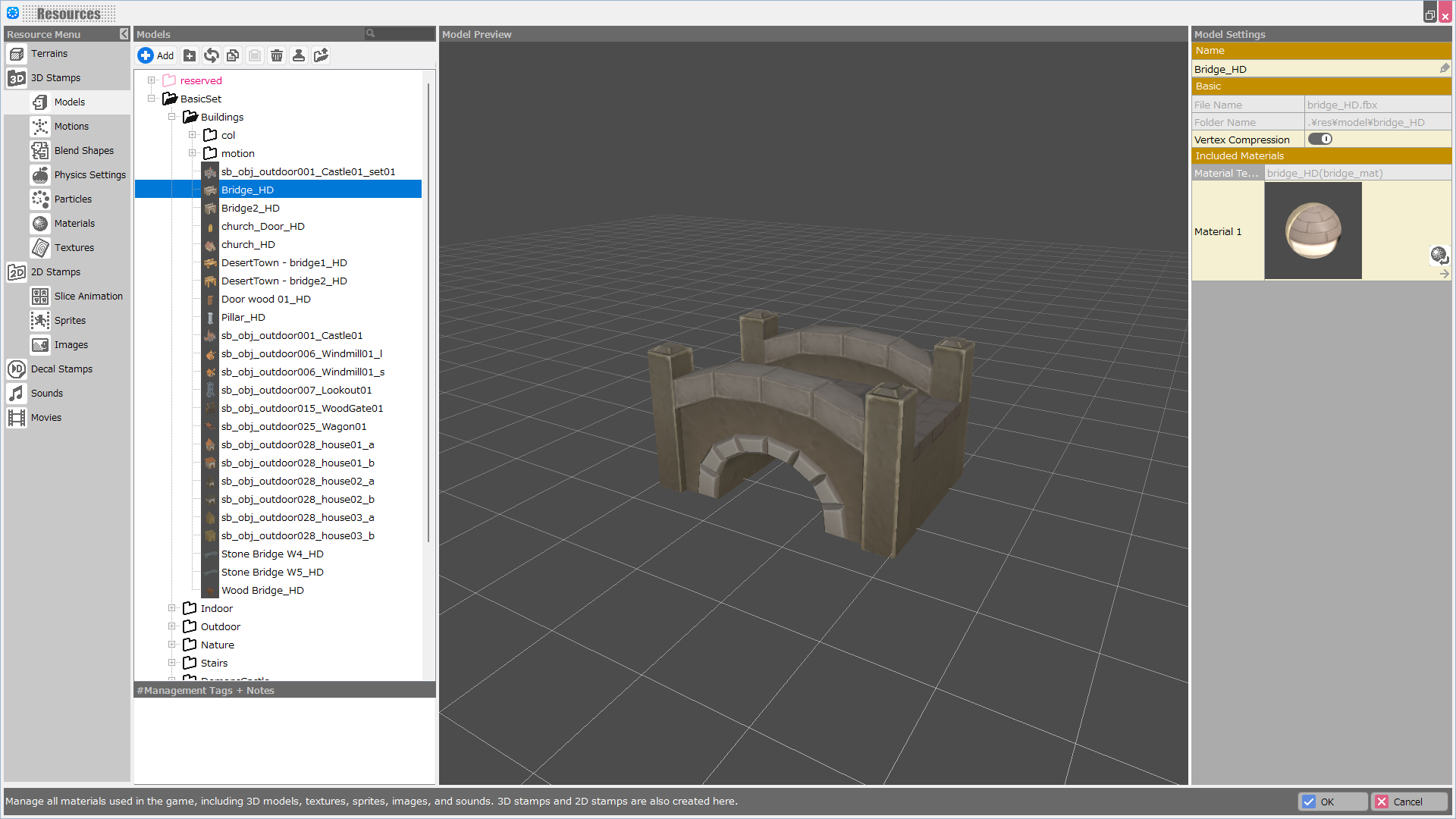

What You Can Do with the "Models" in Resource†

Model of Resource Management allows you to see the basic elements of the model.

Model Settings†

• Add Button
  Add 3D models from the asset picker.

• Folder Button
  Add a folder to organize models.
  Multiple selected models can be grouped into a folder, or models can be moved by drag & drop after adding folders.

• Update Information Button
  Specify a folder for updating data.
  The first time you click on it, you will be asked to specify the path from which you want to import. If you specify it, you will be able to update the data from that folder next time.
  Use this function when you want to keep data for editing in a folder outside of the project.

• Copy Button
  Copy the selected model.

• Paste Button
  Paste the selected model.

• Trash Button
  Delete the selected model.

• Stamp Button
  Register the selected model as a stamp.

• Export Button
  Copy the selected model to a folder of your choice.

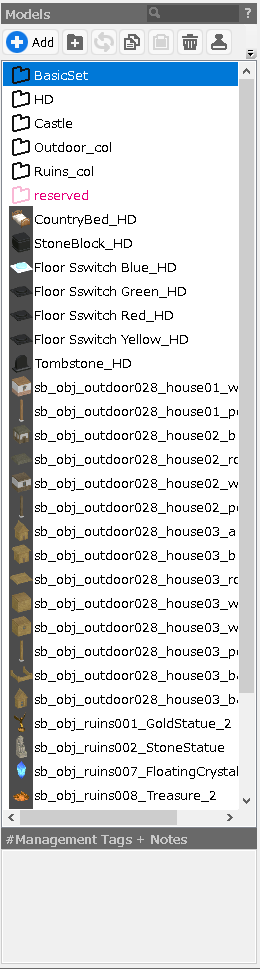

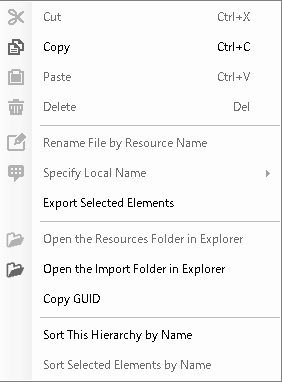

Model List / Right-Click Menu†

In the model list, right-click to view.

• Cut
  Cut the selected files.

• Copy
  Copy the selected files.

• Paste
  Paste the cut and copied files.

• Delete
  Delete the selected files.

• Rename File by Resource Name
  Rename the file name of the specified model with the name of the model currently registered in the model list.

• Specify Local Name
  Valid only when a folder is selected
  Folder name localization function.
  English folder names can be specified when opening in the English version.

• Export Selected Elements
  Export the selected elements as an .exrbr file. If multiple selections are made, they are combined into one file.
  The .exrbr file is a file format that allows various resources to be compiled and imported into Bakin.

• Open the Resources Folder in Explorer
  Open the folder where the resource is stored.

• Open the Import Folder in Explorer
  Open the folder for import. (If there is a folder for updating data added with the Update Information button)

• Copy GUID
  Copy the specific GUID.

• Sort This Hierarchy by Name
  Sort alphabetically by name within the selected hierarchy/folder.

• Sort Selected Elements by Name
  Sort only on multiple selections.

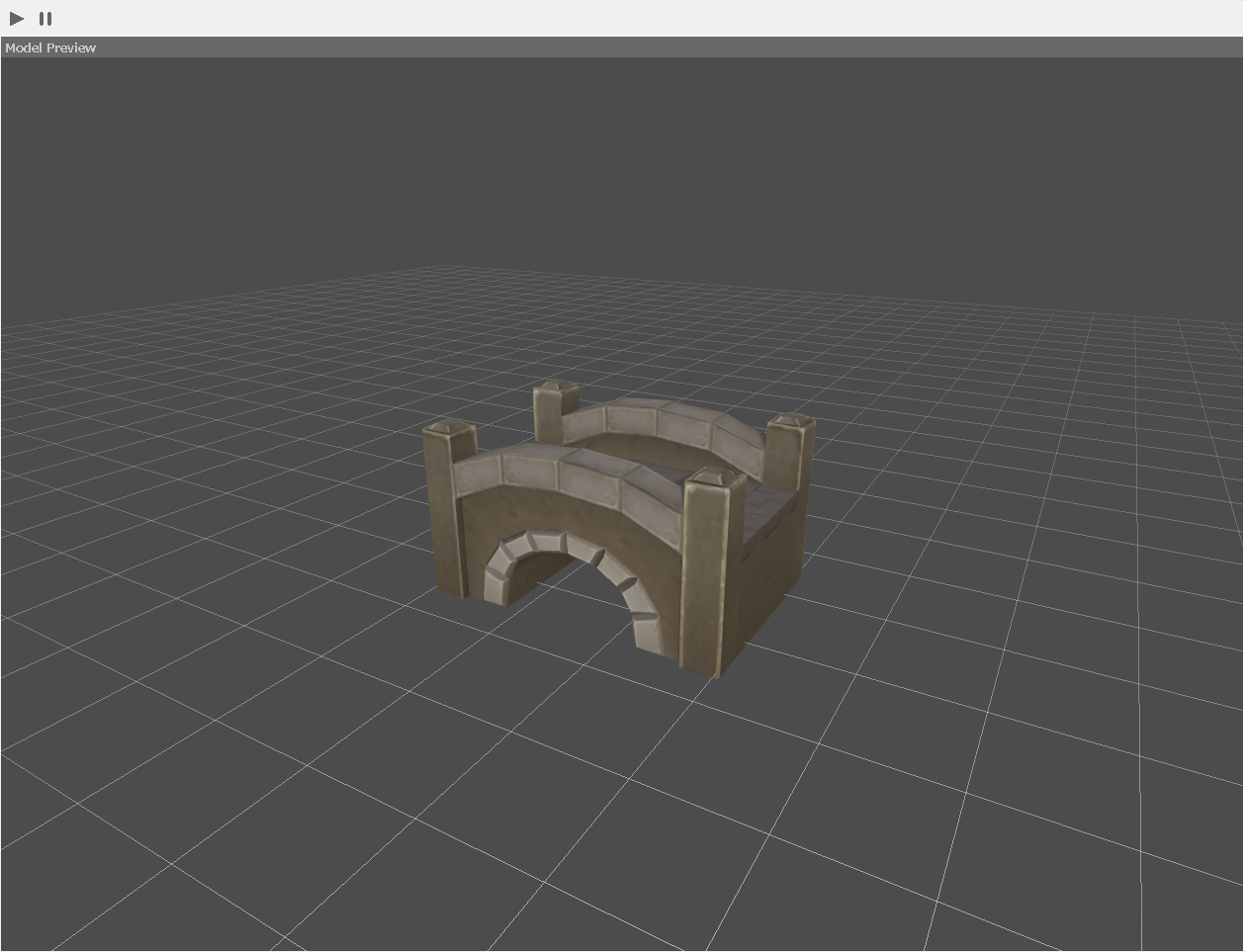

Model Preview†

This is the model preview screen. You can check models.

• Preview
  The camera can be rotated and moved by dragging the right mouse button and shifted horizontally by dragging the middle mouse button.

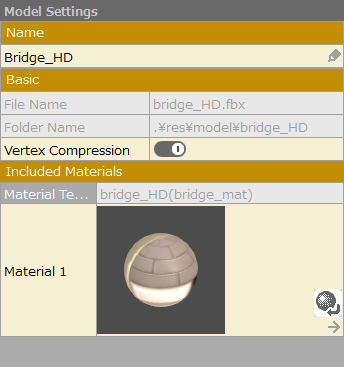

Model Settings†

This is where models are configured.

• Name
  Specify a name for the model.
  (It can also be changed by clicking twice on the model name in the model list.)

• Basic
  • File Name
    The file name of the model being specified.

• Folder Name
  The folder name and folder path of the specified model.

• Included Materials
  A list of materials used in the model is shown.
  By changing the material, it is possible to change only the material without changing the model.

• Material Name
  The name of the material being specified.

• Material
  Select the material you wish to specify.
  You can also use the jump button to go to the corresponding data screen.
