Objects†

↑

Objects and Skyboxes†

The method of adding buildings, monuments, and other objects to be placed on maps.
First, before adding, put all the data required, including a model, textures, motions, etc., into a single folder.


↑

File Format to be Added†

An object consists of three files: model, textures, and motions.
Creation of these requires specific knowledge of 3D graphics and prescribed software.

↑

1. Model (required)†

↑

2. Texture (required)†

↑

3. Motion Files (.fbx)†

If there are motions, prepare the motion data. There are two ways of handling motion data: one is to specify the motion data as it is in the model file, and the other is to use separate files for the model and the motions. (If separate, the supported version of the motion files FBX are the same specifications as the model files.)

[If a Model and Motions are in the Same File]

[If a Model and Motions are Separate Files]

↑

Preparation for Adding a Model†

There are two ways to add a model.
One is to divert Bakin's built-in data, and the second is to prepare new data yourself.
Each procedure is described below.

  1. Prepare a folder for the assets you wish to add.
    This folder is only used temporarily for addition. Any file location or folder name is acceptable.
    The added model will be added under the res folder in the game file folder.

  2. Put a model file (.fbx) and textures file (.bmp or .png) directly under the folder you have prepared.
    Example: If you put an asset (Table) you want to add in the [Table] folder
↑

Preparation of Folder to be Added (1): When exporting system assets†

The default system asset models can be exported to an external folder and customized using CG software. The procedure is as follows

  1. Open any game file, select "Resources -> Models -> reserved -> For Event Templates -> sb_obj_indoor005_Table01" and press the Copy button.

  2. Select any folder to export.

  3. In the exported folder, the selected object folder is created and the FBX file, texture files, and def files (material information, etc.) are exported to it.
  4. Exported models and textures can be modified by DCC tools such as Blender and image editing software.

(Note that if you change the file name of a texture during editing, the texture will not be loaded automatically. To change, either re-specify the texture specification on the Bakin side or open the def file and change the description of the texture name.)

↑

Preparation of Folder to be Added (2): To Create a New One†

Preparation for Adding a Model

  1. Create a folder in any location where you would like to put the assets you would like to add. (Any folder name and location is acceptable.) This folder will be specified as the destination folder for updates after data is added.
    (After adding data to Bakin, updating the data in this folder will also update the corresponding data in Bakin. The added model will be added under the res folder in the game file folder.)

  2. Put a model file (.fbx) and textures file (.bmp or .png) directly under the folder you have prepared.
    Example: If you put an asset (Table) you want to add in the [Table] folder

    To add a new object, create a folder with the name of the model you wish to add in any location, and put all the models and textures to be added in the folder.

  3. Place all files directly in the folder you have prepared.

  4. Textures are automatically searched for and imported based on their names in the FBX file.
    The search will be performed either in the same folder as the FBX or in the "texture" folder within the FBX.
    (If there are motion files separate from the model, add them as separate models and specify motion and stamp settings separately.)
↑

Adding Method†

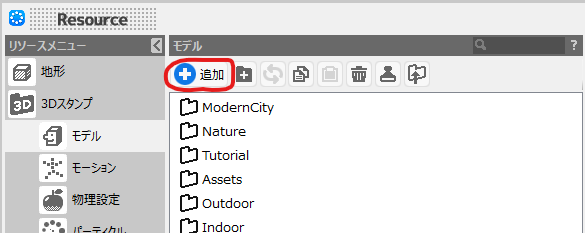

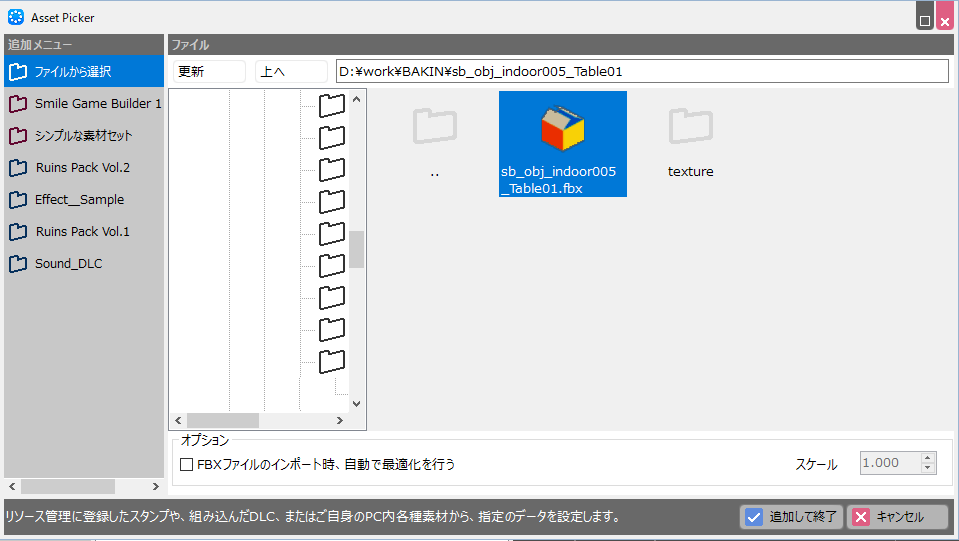

  1. Select [Resources] -> [Models] -> [Add Button] to open the [Asset Picker] window.

  2. Select the [Select from File] tab

  3. Open the folder containing the model you wish to add and select the fbx file.

  4. Check [Auto Optimization When Importing FBX File] if necessary.
    Optimization automatically performs the following processes:
    • Skin weight normalization
    • Polygon triangulation
    • Apply scale (scale option next to the optimization checkbox)
    • For FBX formats earlier than FBX7.4, conversion to FBX7.4
      (If the model file was not imported correctly, uncheck the box.)

  5. Press [Add and Exit].

Steps 1-5 can also be done by dragging and dropping fbx files into the model list.

If a model with the same name already exists, it will be added under an alias.
If you want to update a model that has already been added, press the "Update Information" button.

↑

Stamping a Model†

Models can be stamped so they can be placed on maps.
The stamping procedure is as follows:

  1. Select the model you want to make into a stamp.

  2. Click the Stamp button.


  3. The stamp will be added to the "3D Stamps" list as a new stamp.
↑

About Object Settings†

The added object has no collision detection as it is, and the player walks right through it.
Collision should be specified when a hit setting is required for the shape of the model.

There are two ways to add collisions.

↑

When Using the Simple Collision Setting†

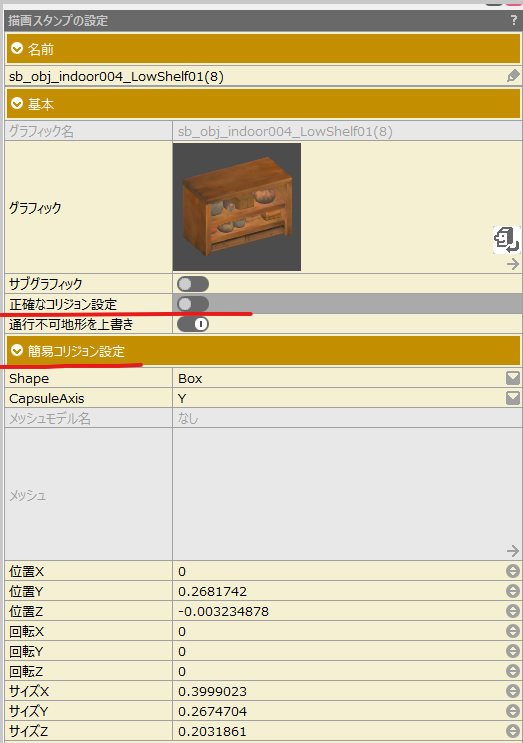

  1. Select the stamp of the model for which you want to apply a collision detection and check the "Simple Collision Settings".
    (The simple collision setting appears only when "Accurate Collision Setting" is turned off.)


  2. Under "Shape," you can select a simple collision shape such as a box or a sphere. Select a close match and adjust the position, rotation, and size while viewing the preview.


    (Models added by drag-and-drop are automatically stamped, which specifies an auto-adjusted box collision, which can be left in place if the model is a simple shape.)
↑

For Shape "Mesh"†

If Shape is selected as "Mesh," you can use your own collision model.
If there is no suitable simple shape, prepare your own collision model and specify it in this setting.

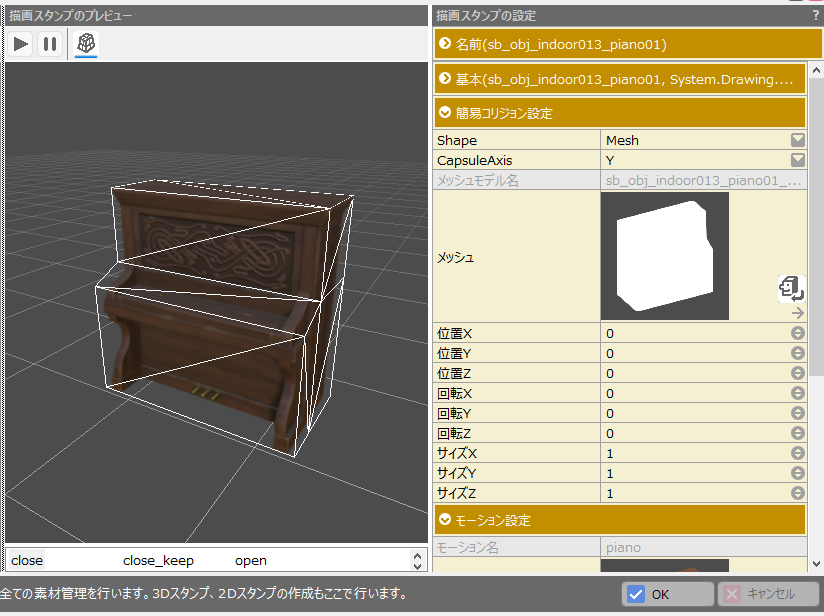

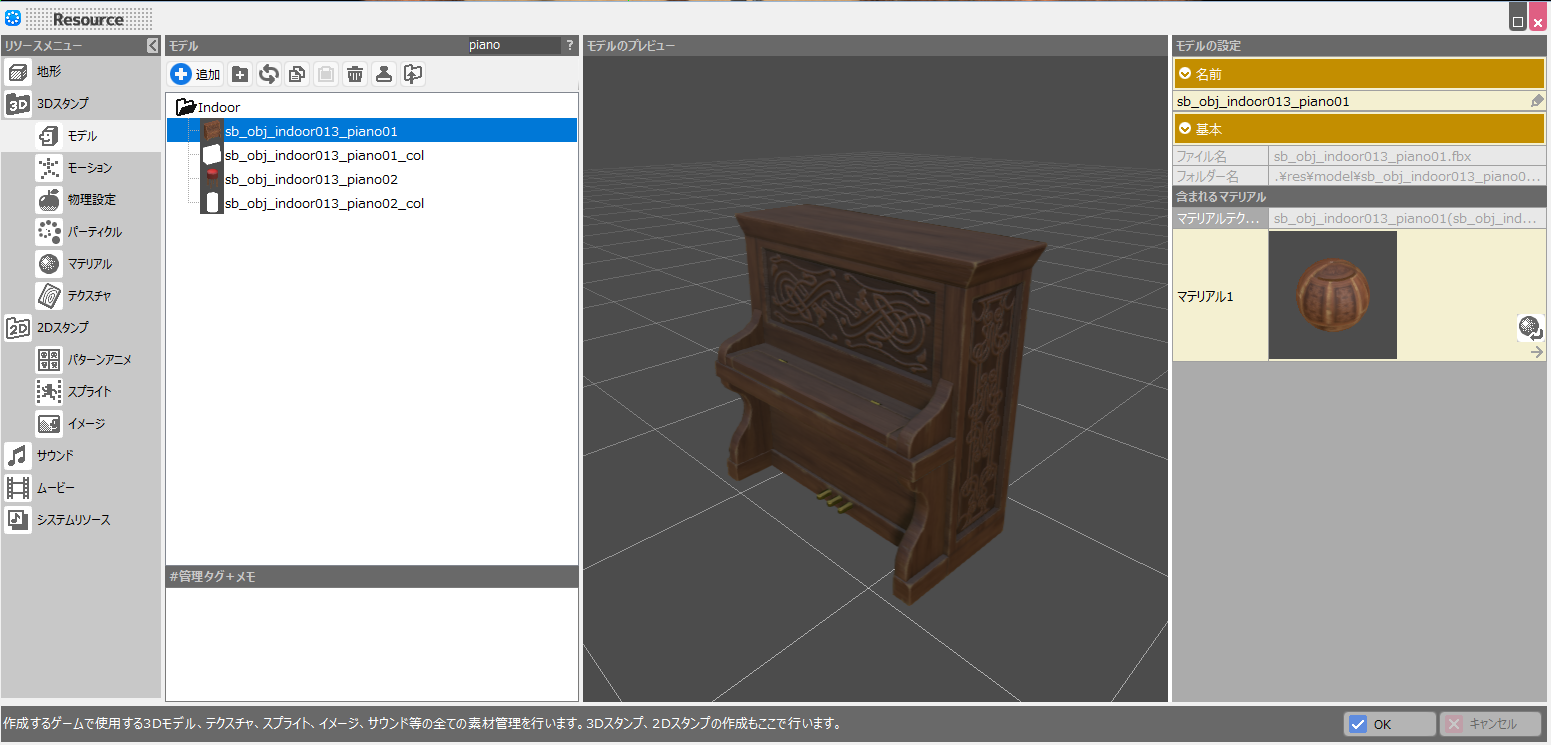

In the example below, a simple collision model is provided for the piano model to determine the collision.

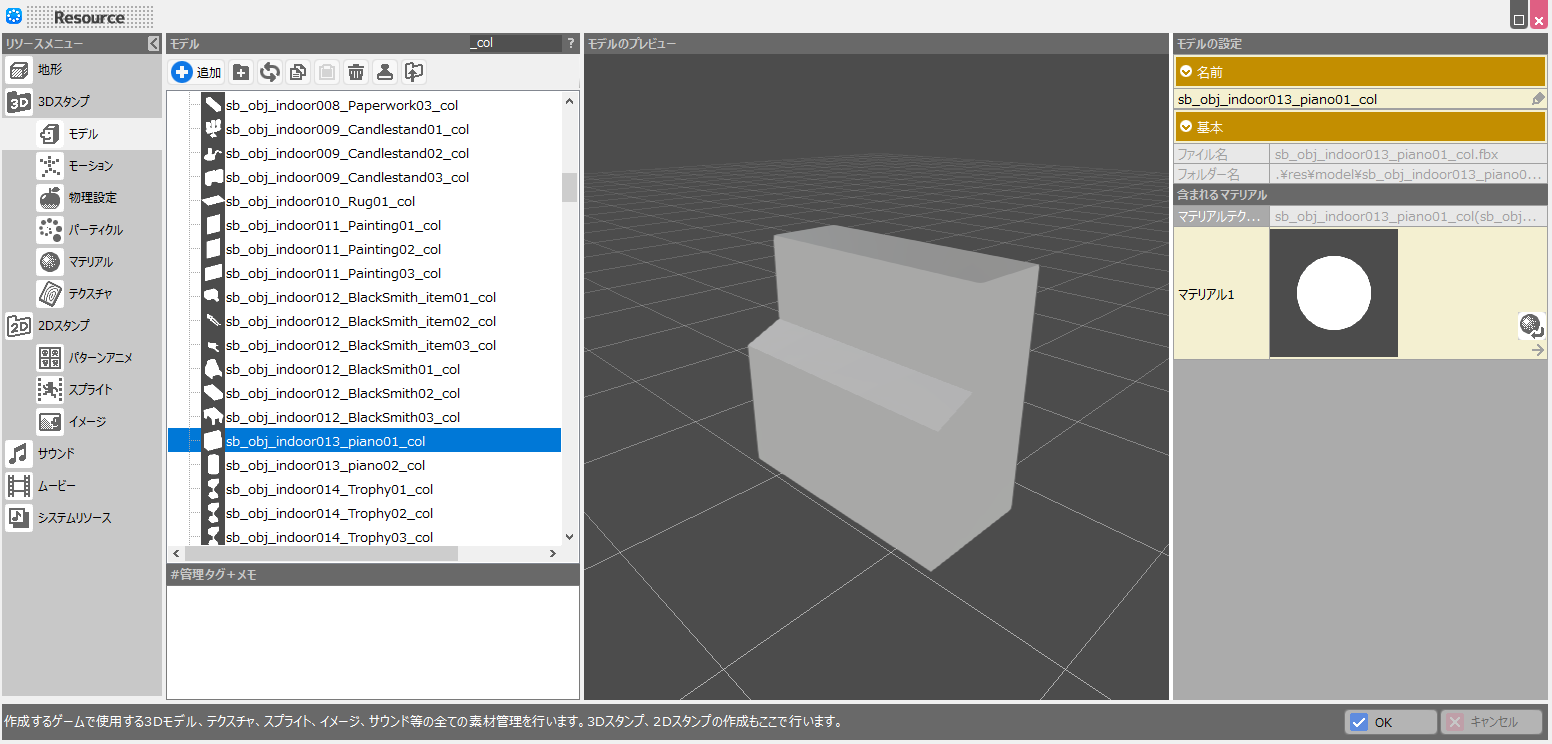

  1. Add a piano model and a collision model for piano, respectively.


  2. Select "Mesh" under the Shape section.
    Click on the right space of the mesh section and select the model for collision.

↑

When Using the "Physics Settings" to Prepare a Dedicated Collision†

If you want to combine multiple collision models or have collisions linked to the movement of the model, you must create a collision setting in Physics Settings.

↑

Specify Multiple Collisions†

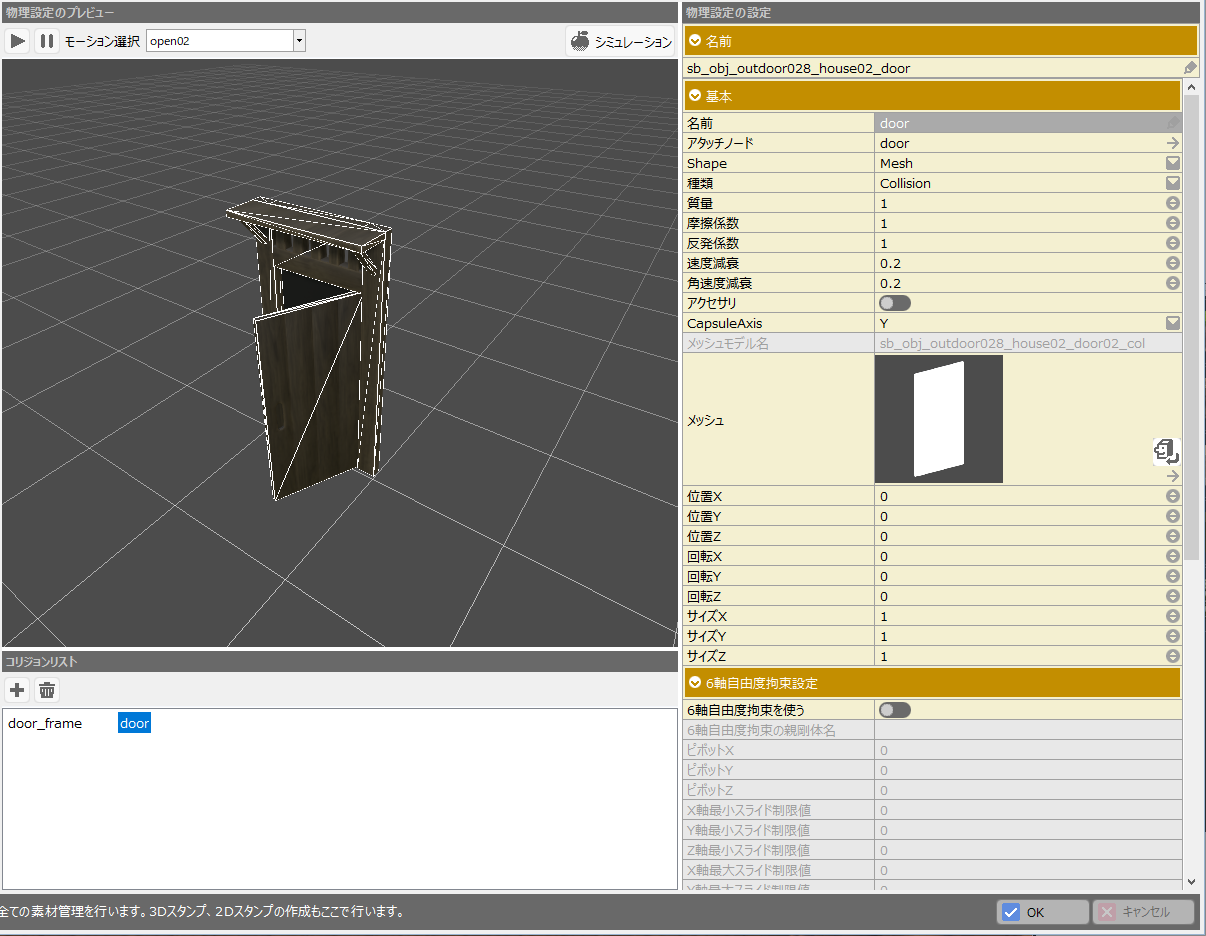

If multiple independent collisions are needed, such as a door and door frame, register multiple collisions in Physics Settings.


  1. Add as many collision specs as needed in the "Collision List" by pressing the [+] Add button.
    In the door example, we added a door frame and door collisions.


  2. Select each collision and adjust it in the "Physics Settings" section.

↑

Linking Collisions to Model Movements†

If you want collisions to be linked to the movement of the model, such as a doorway that opens and closes or an object that swings, use an attach node.



  1. Among the added collisions, select the collision you wish to link to the movement.

  2. Under "Physics Settings -> Basic -> Attach Node," select the node you wish to attach.
    The followings will appear for the attached nodes.
    • The origin "_root"
    • Mesh nodes existing in fbx
    • If there is a skeleton structure, their skeleton nodes

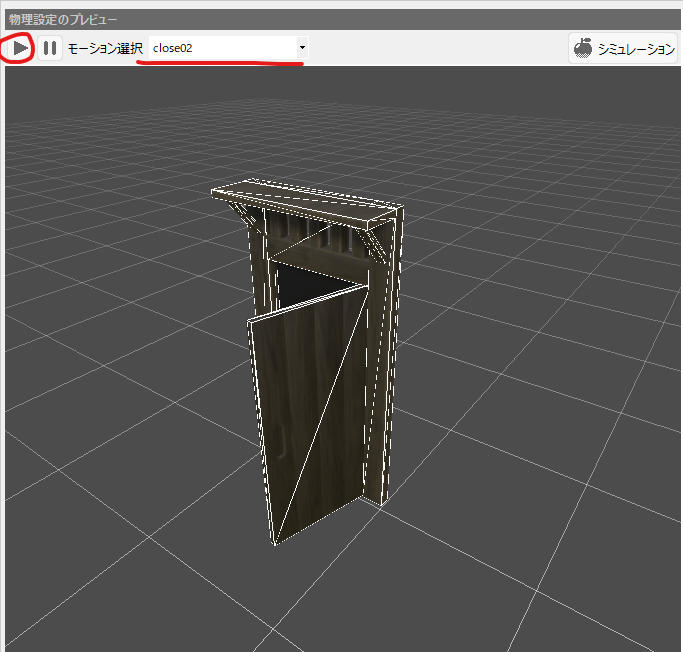

  3. Specify the motion you want to check in the "Physics Settings Preview" and press the Play button to see the motion.

↑

Adding a Skybox Model†

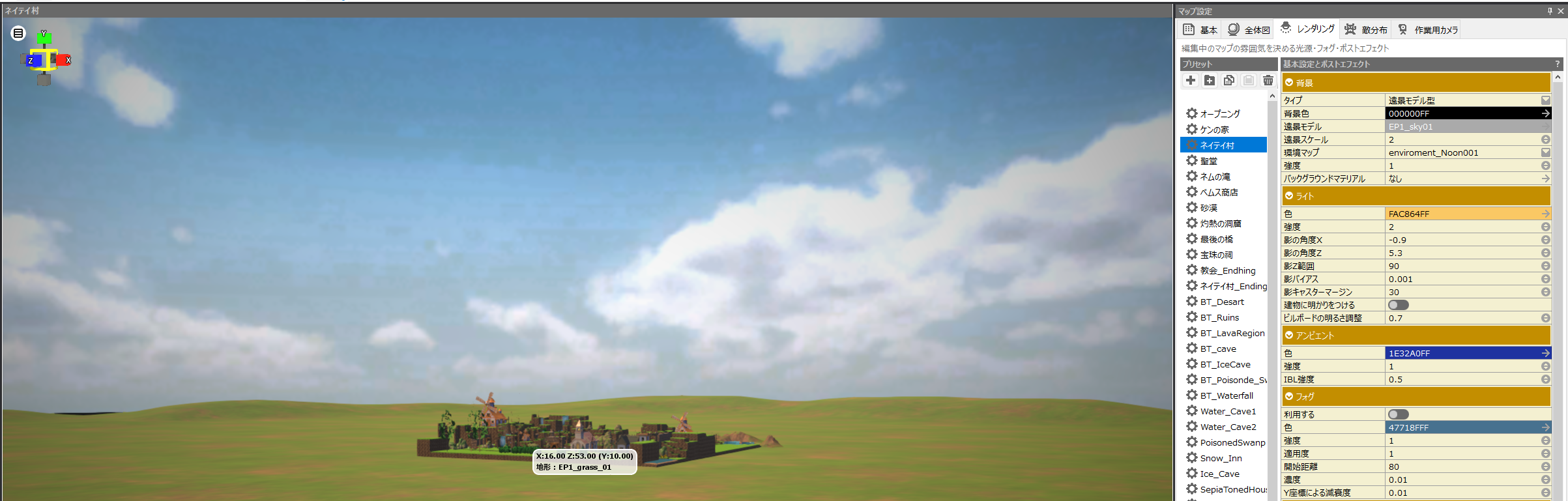

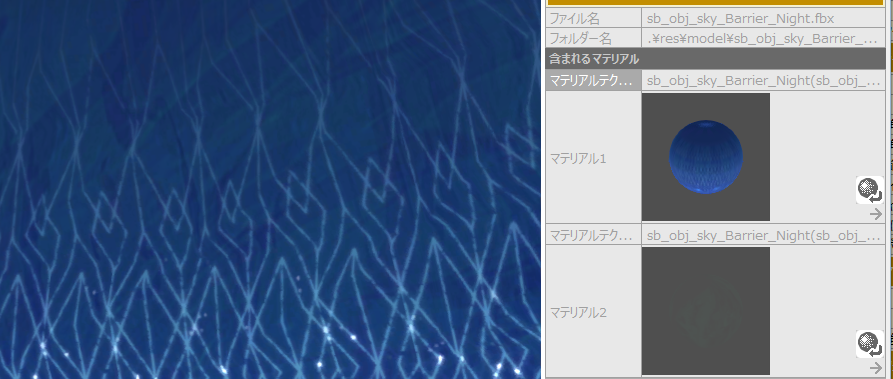

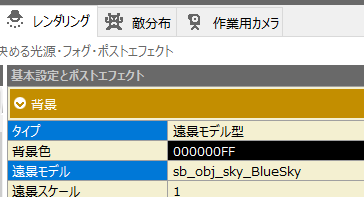

The Distant Landscape Model is a model that displays the "background" such as the blue sky, night sky, cloudy sky, etc. that are displayed outside of maps. You can specify a stamped model in [Map Settings > Rendering > Skybox Model].




What is needed is basically the same as regular model data.
Any model can be registered as a skybox model, but a domed hemispherical model is generally suitable.
The best way to do this is to export a standard skybox model of the default assets and then customize the data.

1. Model (required)

• The Bakin standard skybox model uses the scale "X:1000 , Y:350 , Z:1000" as its basic size in Blender, but you can adjust the scale according to the map size you are creating using the "Skybox Scale" property.

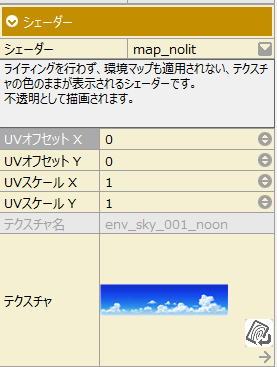

2. Texture (required)
