What You Can Do with 3D Stamps†

3D Stamps in the Resource Management specifies collision, motion, and material settings for the model to be used.

3D Stamp Setting Options†

3D Stamps List

This is a list of registered 3D stamps.
The stamps registered in this list will be reflected in the stamp list in the Map Editor.

• Add Button
  Add data (models, 2D images, particles, etc.) and register them as stamps.

• Folder Button
  Add a folder to manage stamps.
  Multiple selected stamps can be grouped into a folder, and stamps can be moved by drag & drop after adding a folder.

• Copy Button
  Copy the selected stamp.

• Paste Button
  Paste the selected stamp.

• Trash Button
  Delete the selected stamp.

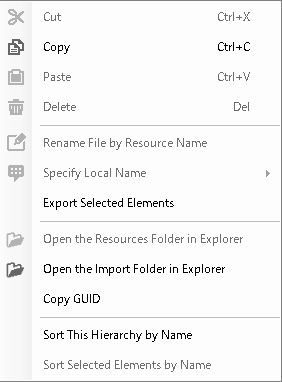

3D Stamps List / Right-Click Menu
Right-click in the 3D Stamps list to view.

• Cut
  Cut the selected stamp.

• Copy
  Copy the selected stamp.

• Paste
  Paste the cut and copied stamp.

• Delete
  Delete the selected stamp.

• Rename File by Resource Name
  Not used for 3D Stamps in Resource Management.

• Specify Local Name
  Folder name localization function.
  English folder names can be specified when opening in the English version.

• Open the Resources Folder in Explorer
  Not used for 3D Stamps in Resource Management.

• Open the Import Folder in Explorer
  Not used for 3D Stamps in Resource Management.

• Copy GUID
  Copy the GUID of the specific stamp.

• Sort This Hierarchy by Name
  Sort alphabetically by name within the selected hierarchy/folder.

• Sort Selected Elements by Name
  Sort only on multiple selections.

Stamp Preview†

This is a preview screen of the stamp.
Check the appearance of the model when it is placed on the map and check the collision and motion.

• Playback Button
  A model with motion also plays back motions.

• Pause Button
  Stop motion playback.

• Collision Display Button
  Turn on/off the display of collisions indicated by white lines.

• Preview
  The camera can be rotated and moved by dragging the right mouse button and shifted horizontally by dragging the middle mouse button.

• Motion List
  This is a list of registered motions.
  Click on a motion name to play that motion.

Rendering Stamp Settings†

This section provides detailed settings for the stamp.

• Name
  Specify a name for the stamp.
  (You can also change it by clicking twice on the stamp name in the 3D stamp list.)

• Basic
  • Graphic Name
    The name of the model specified.

• Graphic
  This is a graphic that is specified.
  Click on a thumbnail to select a model.
  You can also use the jump button to go to the corresponding model material screen.

• Subgraphic
  Other graphics can be registered as subgraphics.
  Add a new subgraphic with "+" and select the graphic you wish to register under "Subgraphic".
  Position, rotation, and scale can be specified individually.
  When "Apply Position Only" is turned on, the rotation XYZ of the subgraphic is fixed even if the parent graphic is rotated. This is especially useful for particles.

• Accurate Collision
  When off, "Simple Collision Setting" is enabled.
  When "On" is selected, "Accurate Collision Setting" is enabled. The physical settings registered in Physical Settings Management can be selected.

• Overwrite Non-Traversable Terrain
  If this stamp is placed on top of terrain specified as "Non-Traversable", the character will be able to progress over it.

• Billboarding
  Turning it on will cause the stamp to change direction only in response to the camera's Y-axis orientation.

Simple Collision Settings†

• Shape
  • [Box]
    Specify the collision of a box shape.
  • [Sphere]
    Specify the collision of a sphere.
  • [Capsule]
    Specify the collision of a capsule type.
  • [Mesh]
    You can specify the mesh collision you have prepared.
  • [Vehicle]
    Collision can be specified for a vehicle.

• Capsule Axis
  Specify the direction of the axis for capsule collision setting.

• Mesh Model Name
  The model name of the Mesh collision specified in the mesh.

• Mesh
  Specify the model you wish to apply to the Mesh collision.

• Position XYZ
  Specify the position XYZ of the collision model, respectively.

• Rotation YYZ
  Specify the rotation values XYZ for the collision model, respectively.

• Size XYZ
  Specify the size XYZ of the collision model, respectively.

• Terrain Assignment
  You can specify a "terrain" and add the "sound effects" and ""state" changes when walking on the terrain" to this stamp.
  This setting is valid even when this stamp is used with the event's graphic.
  You can edit the information set for "Terrain" in Resources > Terrains.
  The "sound effect" will be the "footsteps" when the player walks on this stamp.
  By taking advantage of the "change in 'status' granted when walking on the stamp," the player cast(s) can be "poisoned" when walking on this stamp, and so on.

Accurate Collision Setting†

Select this option if you wish to add complex physics settings such as motion-synchronized collisions for door models, etc.
You must prepare your physics settings in advance in the Physics Settings Management screen.

• Physics Setting Name
  The name of the physics setting you have specified in the Physics Settings.

• Physics Setting
  Select the physics setting you wish to specify.

Motion Setting†

Select the motion you added on the motion management screen.
The motion must be specified in the motion management screen in advance.

#ref(): File not found: "Motion Setting.png" at page "3D Stamps"

• Motion Name
  The name of the selected motion specification.

• Motion
  Select the motion you wish to specify.
  You can also use the jump button to go to the corresponding data screen.

Materials Used†

Lists the materials used in the model registered in the graphic.
By changing the material used, it is possible to change only the material without changing the model.

• Material Name
  The name of the material being specified.

• Material
  Select the material you wish to specify.
  You can also use the jump button to go to the corresponding data screen.
