レンダリング設定情報クラス [詳解]

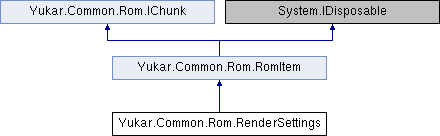

Yukar.Common.Rom.RenderSettings の継承関係図

公開メンバ関数
Common.Rom.RenderSettings	Clone ()

bool	Equals (RenderSettings o)

override void	load (BinaryReader reader)

override bool	initializingAfterLoading ()

override void	save (BinaryWriter writer)

bool	isPreset ()

Common.Rom.RenderSettings	fromMap (Common.Rom.Map map)

Common.Rom.RenderSettings	toMap (Common.Rom.Map map)

string	toTSV ()

基底クラス Yukar.Common.Rom.RomItem に属する継承公開メンバ関数
string	getCategory (string locale=null)

System.Drawing.Bitmap	getThumbnail (THUMBNAILMAKERNOTIFY notify, out bool setNotify)

System.Drawing.Bitmap	getThumbnail (THUMBNAILMAKERNOTIFY notify)

System.Drawing.Bitmap	getThumbnail ()

void	invalidateThumbnail ()

void	invalidateThumbnail (THUMBNAILMAKERNOTIFY notify)

void	forceInvalidateThumbnail (THUMBNAILMAKERNOTIFY notify)

virtual void	save (BinaryWriter writer)

virtual void	load (BinaryReader reader)

virtual void	saveUsedGUID (BinaryWriter writer, bool inIncludeChildUseRomGUID)
	使用しているGUIDの書き出し(ツール用) [詳解]

void	saveUsedGUID (BinaryWriter writer)
	使用しているGUIDの書き出し(ツール用) [詳解]

virtual bool	initializingAfterLoading ()

virtual void	postImport (string srcpath)

virtual void	reImport ()

virtual void	export (string path)

virtual void	onCatalogCleanup ()

void	copyFrom (Common.Rom.RomItem src)

virtual void	CheckRecourceConsistency (Catalog inCatalog)

virtual void	ChangeId (Dictionary< Guid, Rom.RomItem > inChangeIdDic)
	使用しているIdを対応するロムのIdに差し替える [詳解]

void	ClearId (List< Rom.RomItem > inClearRomItemList)
	リストのロムの使用を削除 [詳解]

void	Dispose ()

void	AddUpdatecall (int count)

void	save (BinaryWriter writer)

void	load (BinaryReader reader)

静的公開メンバ関数
static int	PresetGuidToIndex (Guid guid)

static Guid	PresetIndexToGuid (int index)

基底クラス Yukar.Common.Rom.RomItem に属する継承静的公開メンバ関数
static void	writeChunk (System.IO.BinaryWriter writer, IChunk rom)

static void	readChunk (System.IO.BinaryReader reader, IChunk rom)

static T	Clone< T > (RomItem inSrc)

static bool	equalChunk (IChunk a, IChunk b)

公開変数類
Map.BgType	bgType = Map.BgType.COLOR

Guid	skyModel = Guid.Empty

float	skyModelScale = 1.0f

Color	bgColor = new Color(0, 0, 0, 255)

Guid	reflection = Map.REFMAP_DICT_ID_TO_GUID[1]

float	reflectionIntensity = 1.0f

Guid	bgMaterial = Guid.Empty

Color	dirLightColor = new Color(214, 202, 188, 255)

float	dirLightIntensity = 0.4f

float	shadowRotateX = -1.2f

float	shadowRotateY = -0.7f

float	shadowBias = 0.001f

float	shadowDistance = 50

float	shadowMargin = 30

int	shadowCascadeCount = 1

Vector3	shadowCascadeStep = new Vector3(0.05f, 0.15f, 0.5f)

bool	lightOnForBuildings = false

float	billboardLightModulation = 1.0f

Color	ambLightColor = new Color(188, 174, 156, 255)

float	ambientIntensity = 0.3f

float	iblIntensity = 0

bool	fogEnable = false

Color	fogColor = new Color(255, 255, 255, 255)

float	fogIntensity = 1.0f

float	fogStart = 1000.0f

float	fogDepthDensity = 0.3f

float	fogHeightFallOff = 0.2f

float	fogApply = 1.0f

bool	useBloom = true

float	bloomApply = 0.6f

float	highlightThreshold = 0.8f

bool	useDof = true

float	dofSmoothStart = 30.0f

float	dofSmoothRange = 40.0f

float	dofRadius = 0.1f

bool	useVignette = true

float	vignette = 0.0f

Guid	lut = Guid.Empty

bool	useSSAO = false

Color	ssaoColor = new Color(0, 0, 0, 255)

float	ssaoRadius = 0.05f

float	ssaoMinLimit = 0.05f

float	ssaoMaxLimit = 0.3f

float	ssaoShadowScale = 0.1f

int	ssaoSampleCount = 4

float	ssaoContrast = 0.3f

bool	useDeferred = false

bool	useChromaticAbberation = false

float	chromaticAbberationSize = 0.1f

bool	useAutoExposure = true

float	exposureTargetBrightness = 0.3f

float	exposureMinScale = 0.4f

float	exposureMaxScale = 1.5f

bool	useSSSSS = true

float	sssssRadius = 0.01f

float	sssssApply = 0.1f

float	sssssSampleCount = 4

int	version = nowVersion

int	presetIndex = -1

基底クラス Yukar.Common.Rom.RomItem に属する継承公開変数類
Guid	guId

String	name

string	tags = ""

string	category = ""

プロパティ
int	BgType `[get, set]`

System.Drawing.Color	BgColor `[get, set]`

Guid	SkyModel `[get, set]`

Guid	Reflection `[get, set]`

float	ReflectionIntensity `[get, set]`

Guid	BgMaterial `[get, set]`

System.Drawing.Color	DirLightColor `[get, set]`

float	DirLightIntensity `[get, set]`

float	ShadowRotateX `[get, set]`

float	ShadowRotateY `[get, set]`

float	ShadowDistance `[get, set]`

float	ShadowBias `[get, set]`

float	ShadowMargin `[get, set]`

bool	LightOnForBuildings `[get, set]`

float	BillboardLightModulation `[get, set]`

System.Drawing.Color	AmbLightColor `[get, set]`

float	AmbLightIntensity `[get, set]`

float	IBLIntensity `[get, set]`

System.Drawing.Color	FogColor `[get, set]`

bool	FogEnable `[get, set]`

float	FogApply `[get, set]`

float	FogIntensity `[get, set]`

float	FogStart `[get, set]`

float	FogDepthDensity `[get, set]`

float	FogHeightFallOff `[get, set]`

bool	UseSSAO `[get, set]`

System.Drawing.Color	SSAOColor `[get, set]`

float	SSAORadius `[get, set]`

int	SSAOSampleCount `[get, set]`

float	SSAOMinLimit `[get, set]`

float	SSAOMaxLimit `[get, set]`

float	SSAOShadowScale `[get, set]`

float	SSAOContrast `[get, set]`

bool	UseBloom `[get, set]`

float	BloomApply `[get, set]`

float	HighlightThreshold `[get, set]`

bool	UseDOF `[get, set]`

float	DOFSmoothStart `[get, set]`

float	DOFSmoothRange `[get, set]`

float	DOFRadius `[get, set]`

bool	UseVIGNETTE `[get, set]`

float	Vignette `[get, set]`

Guid	LUT `[get, set]`

bool	UseDeferred `[get, set]`

bool	UseChromaticAbberation `[get, set]`

float	ChromaticAbberationSize `[get, set]`

bool	UseAutoExposure `[get, set]`

float	ExposureTargetBrightness `[get, set]`

float	ExposureMinScale `[get, set]`

float	ExposureMaxScale `[get, set]`

bool	UseSSSSS `[get, set]`

float	SSSSSRadius `[get, set]`

float	SSSSSApply `[get, set]`

int	SSSSSSampleCount `[get, set]`

float	SkyModelScale `[get, set]`

int	ShadowCascadeCount `[get, set]`

float	ShadowCascadeBorder1 `[get, set]`

float	ShadowCascadeBorder2 `[get, set]`

float	ShadowCascadeBorder3 `[get, set]`

基底クラス Yukar.Common.Rom.RomItem に属する継承プロパティ
System.Drawing.Bitmap	Thumbnail `[get]`

ThumbnailStatusType	ThumbnailStatus = ThumbnailStatusType.Empty`[get, set]`

string	Name `[get, set]`

virtual int	RefCount `[get]`

virtual bool	UseRefCount `[get]`

Folder	Parent `[get, set]`

その他の継承メンバ
基底クラス Yukar.Common.Rom.RomItem に属する継承公開型
enum	ThumbnailStatusType { Empty = 0 , Creating , Created , Failed }
	サムネイル画像生成状況

基底クラス Yukar.Common.Rom.RomItem に属する継承静的公開変数類
static int	thumbnailWidth = 128

static int	thumbnailHeight = 128

const char	CATEGORY_SPLITTER = '\\'

static CREATETHUMBNAIL	createThumbnailFunction = null

const int	UnknownRefCount = -2000

基底クラス Yukar.Common.Rom.RomItem に属する継承限定公開メンバ関数
virtual void	Dispose (bool disposing)

詳解

レンダリング設定情報クラス

メソッド詳解

◆ initializingAfterLoading()

override bool Yukar.Common.Rom.RenderSettings.initializingAfterLoading ( )

virtual

Yukar.Common.Rom.RomItemを再実装しています。

◆ load()

override void Yukar.Common.Rom.RenderSettings.load ( BinaryReader reader )

virtual

Yukar.Common.Rom.RomItemを再実装しています。

◆ save()

override void Yukar.Common.Rom.RenderSettings.save ( BinaryWriter writer )

virtual

Yukar.Common.Rom.RomItemを再実装しています。

このクラス詳解は次のファイルから抽出されました:

RenderSettings.cs
