Sounds (Resources)

Sounds (Resources)†

Manage sound data. sound formats available in RPG Developer Bakin are .ogg, .wav(Uncompressed PCM only).
(!)The sampling rate of the sound file can be set to 48 kHz (48000 Hz) in advance before importing to prevent deterioration of sound quality.

Sound Settings Options†

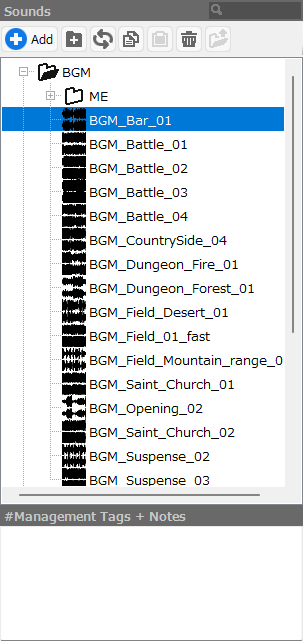

Sound List†

• Add Button
  Add a sound from the asset picker.

• Folder Button
  Add a folder to manage sounds.

• Update Information Button
  Assign a folder for updating data.
  The first time you click on it, you will be asked if you want to specify the path from which you want to import the data. If you specify it, you will be able to update the data from that folder next time.
  Use this function when you want to place data for editing in a folder outside of the project.

• Copy Button
  Copy the selected sounds.

• Paste Button
  Paste the selected sounds.

• Trash Button
  Deletes the selected sounds.

• Export Button
  Copy the selected sounds to any folder.

• Management Tags + Notes
  You can add management tags and jot down memorandums.
  Tags are registered by adding # to the beginning of the line. Tags and notes entered in this field will not appear in the game.

Sound List / Right-Click Menu†

Right-click in the sound list to view.

• Cut
  Cut out the selected sound file.

• Copy
  Copy the selected sound file.

• Paste
  Paste the cut and copied sound file.

• Delete
  Delete the selected sound file.

• Rename File by Resource Name
  Rename the specified file name with the name of the sound currently registered in the sound list.

• Specify Local Name
  Valid only when a folder is selected.
  Folder name localization function.
  English folder names can be specified when opening in the English version.

• Export Selected Elements
  Export the selected elements as an .exrbr file. If multiple selections are made, they are combined into one file.
  The .exrbr file is a file format that allows various resources to be compiled and imported into Bakin.

• Open the Resources Folder in Explorer
  Open the folder where the resource is stored.

• Open the Import Folder in Explorer
  Open the folder for import.

• Copy GUID
  Copy the unique GUID of the sound file.

• Sort This Hierarchy by Name
  Sort alphabetically by name within the selected hierarchy/folder.

• Sort Selected Elements by Name
  Sort only on multiple selections.

• Be Sure to Include in Published Work Export
  Ensure that the selected resources are included in the work when it is exported as a published work.
  (!)When exporting a work as a published work, resources other than “resources used in the game,” such as those placed on maps or used in events, will not be included in the work.
  Therefore, resources that are used only by plugins installed in the work must be explicitly included in the work with this feature.

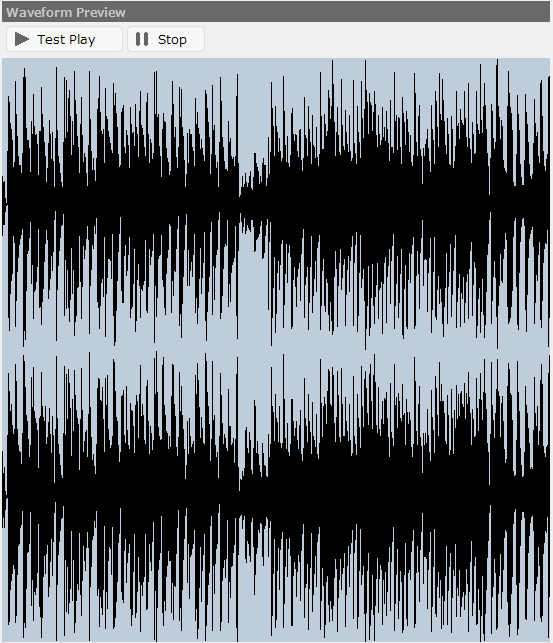

Waveform Preview†

This is the sound waveform preview screen.

• Preview Screen
  Sound waveform data is displayed.

• Test Play Button
  Play the sound from the beginning.

• Stop Button
  Stop sound playback.

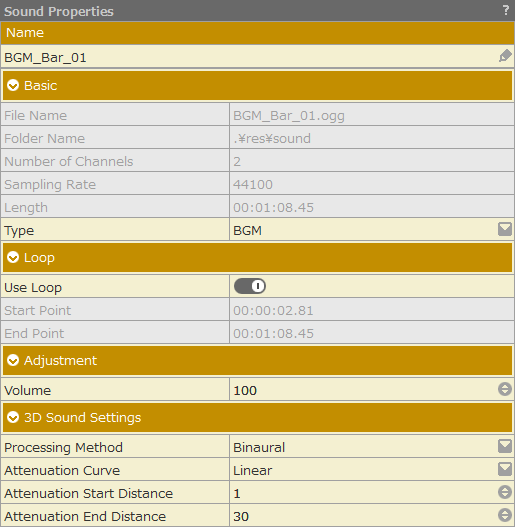

Sound Settings†

This section is for sound settings.

• Name
  Specify a sound name for use within this project.
  (It can also be changed by clicking twice on the sound name in the sound list.)

• Basic
  • File Name (cannot be changed)
    The file name of the sound.

• Folder Name (cannot be changed)
  The name of the folder where the sound is stored.

• Number of Channels (cannot be changed)
  The number of sound channels.

• Sampling Rate (cannot be changed)
  The sampling rate of the sound.

• Length (cannot be changed)
  Sound length.

• Type
  The type of sound can be specified as one of three types: BGM, Environmental Sound, or SE.
  If you want to play background music at the event, you can choose from the "BGM" type, and if you want to play SE, you can choose from the "SE" type.
  If this "Type" is not specified, all imported data will be specified as BGM, so please change the type according to your data usage.

• Loop
  • Use Loop
    Use the sound data loop specification.
    Loop start/end points must be embedded in the sound data in advance. Please use a sound data processing tool to specify the loop.

• Start Point
  The number of seconds at the start of the loop setting included in the sound data.

• End Point
  The number of seconds at the end of the loop setting included in the sound data.

• Adjustment
  • Volume
    You can specify the volume of the sound within this project. This will be the default volume when adjusting the volume in events and configurations.

• 3D Sound Settings
  Adjust the settings when “3D Sound” is checked in the “Play Sound Effect” event panel.
  • Processing Method
    Specify how the stereo effect is applied.
    • Binaural
      Performs advanced surround processing that simulates auditory effects created by the shape of the human ear.

      Bakin features a 3D sound engine capable of reproducing binaural audio through regular speakers.
      This engine emulates how humans perceive sound with both ears, allowing for realistic depth and spatial positioning of audio. It’s also suitable for creating immersive experiences such as ASMR.

• Planer
  Only simple panning by left/right volume balance is performed.

• Attenuation Curve
  Specify the attenuation curve of the volume according to the distance.
  • Fix
    No attenuation by distance is performed.

• Linear
  The volume changes linearly with distance. There is no attenuation up to the Attenuation Start Distance, and the volume becomes 0 at the Attenuation End Distance.

• Logarithmic
  Volume changes based on a logarithmic scale.
  Like Linear, there is no attenuation before the Attenuation Start Distance. However, once that distance is exceeded, the volume initially drops sharply, then decreases more gradually as the distance increases.
  The Attenuation End Distance is not used in this mode.

• Attenuation Start Distance
  Specify the distance at which the volume attenuation due to distance begins.

• Attenuation End Distance
  Specify the distance at which the volume attenuation by distance ends (i.e., the volume goes to zero).
